UV curing sensor + automatic stage mapping system

Features

Non-contact, nondestructive measurement of the effect of UV resin [patented]

Non-contact, nondestructive measurement

• Measurement can be done without touching the sample, and inline nondestructive inspection is possible
• Measurement is possible even when the sample is inserted in glass or film, such as film adhesion with UV curing resin

Measure in real time

• Ideal for inline inspection (analog output)
• We can measure change over time while irradiating ultraviolet light

Measure under illumination

• Stable measurement is possible even under indoor lighting and under curing ultraviolet light

Information request / inquiry

      .

Applications

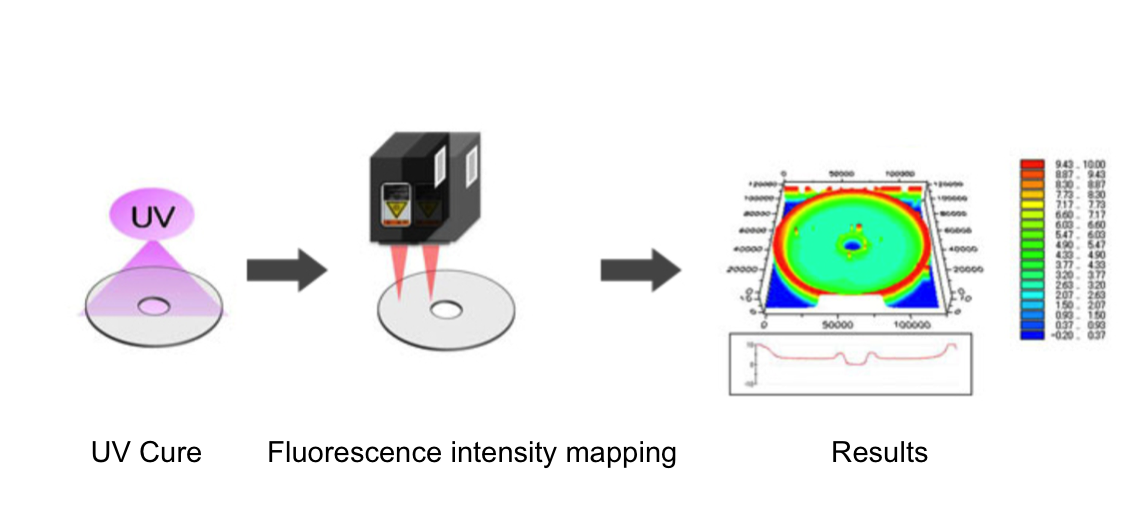

• Visualization of in-plane hardness distribution
• Detection of the degree of cure of specified coordinates (good or bad judgment)
• Measuring in-plane defects

Useful in field

• Optimization of irradiation light source

• Blue-ray disc measurement

  • Example
